Canister Anode
BSS Technologies manufactures factory pre-assembled Canister Anodes featuring MMO titanium, silicon iron, or graphite cores centered inside galvanized steel canisters packed with calcined petroleum coke breeze for rapid underground field installation.
Pre-Packaged Impressed Current Ground Beds for Rapid Field Deployment
Traditional ground bed installations often require complex field jointing and messy on-site backfill mixing. To eliminate this, we manufacture pre-assembled Canister Anodes inhouse at our facility. By encasing the anode core inside a galvanized steel canister packed with vibrated petroleum coke breeze, these units deliver immediate low ground resistance, protected joints, and rapid installation across any industrial project.
What Are Canister Anodes?

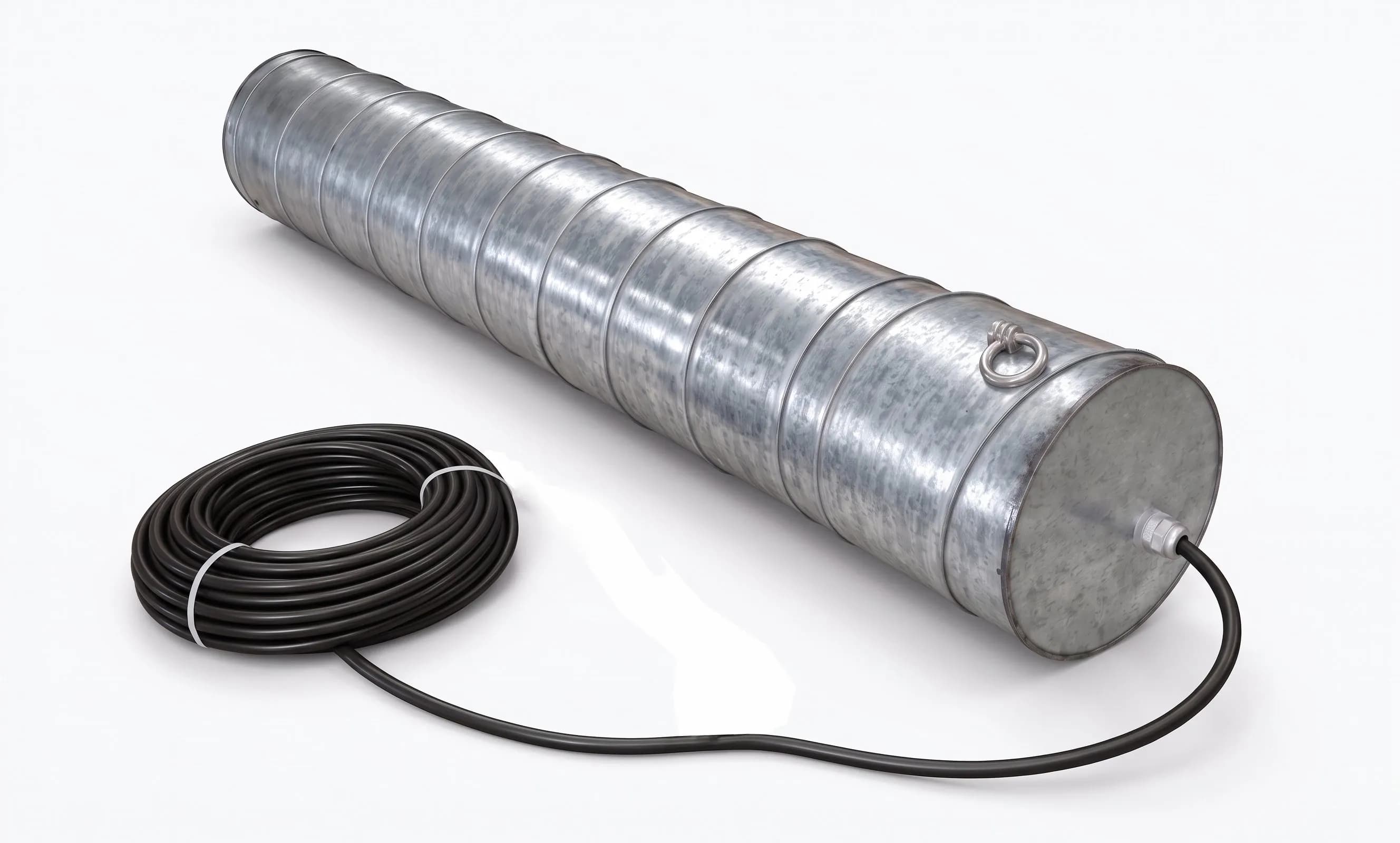

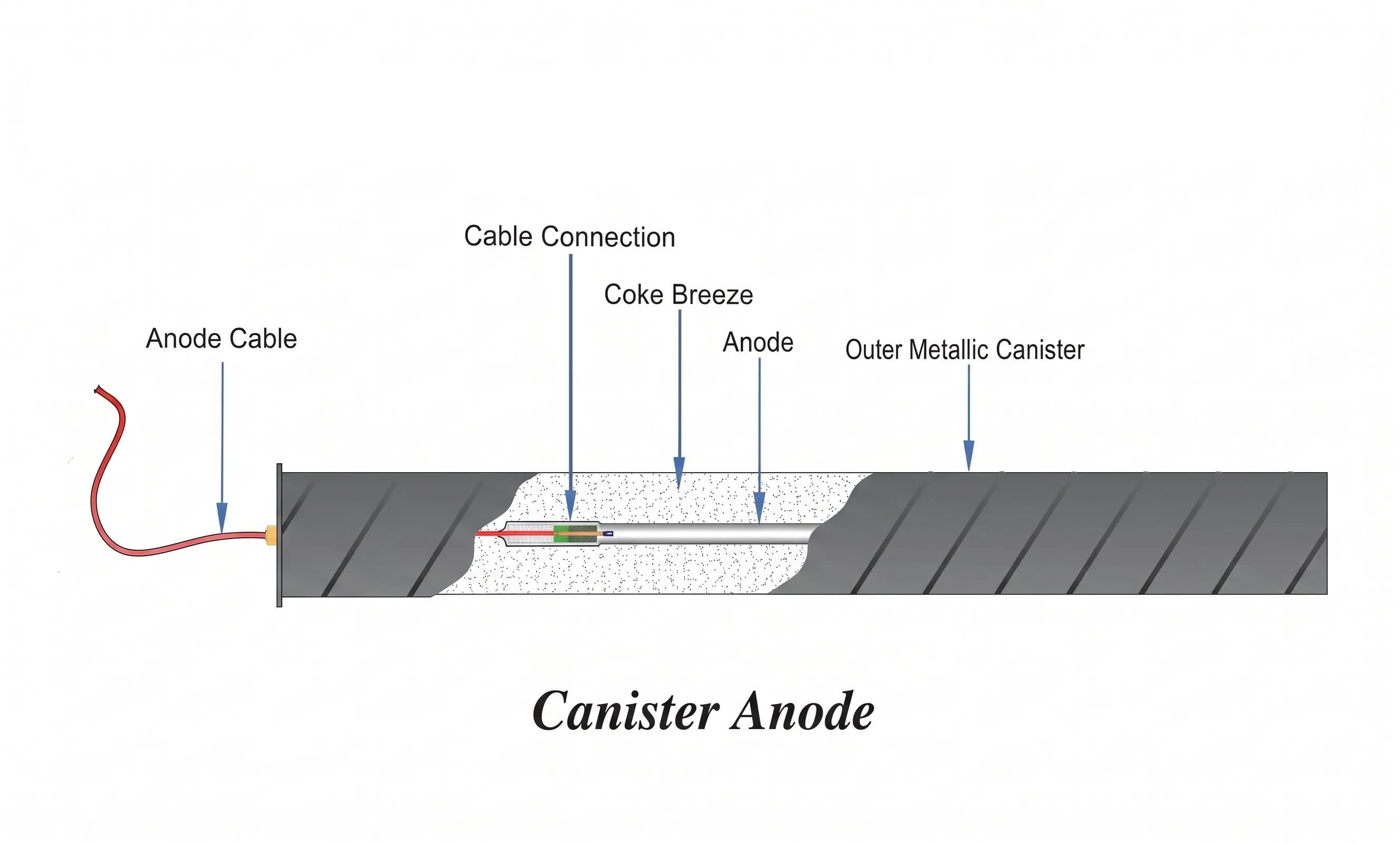

A Canister Anode is a factory-assembled, self-contained Impressed Current Cathodic Protection (ICCP) module. It features an active anode core held rigidly inside a galvanized steel tube, which is pre-packed with highly conductive, vibrated petroleum coke breeze. This controlled manufacturing guarantees a consistent, low-resistance environment, ensuring optimal electrical performance and eliminating the guesswork of on-site preparation.
Unlike traditional field assemblies that risk high-resistance air voids and delicate cable damage during manual backfilling, these units arrive completely sealed and ready to use. Contractors simply lower the canister into the trench or borehole. Once buried, the outer steel shell slowly corrodes, leaving behind a perfectly compacted, void-free column of conductive backfill tightly packed around the active core for reliable, long-term protection.
Targeted Canister Anode use cases
Canisterised anodes are engineered for rapid deployment in environments where field-mixing backfill is impractical or hazardous. By providing an immediate, factory-compacted low-resistance envelope, these pre-packaged modules guarantee optimal current discharge even in challenging, high-resistivity rocky or sandy soils.

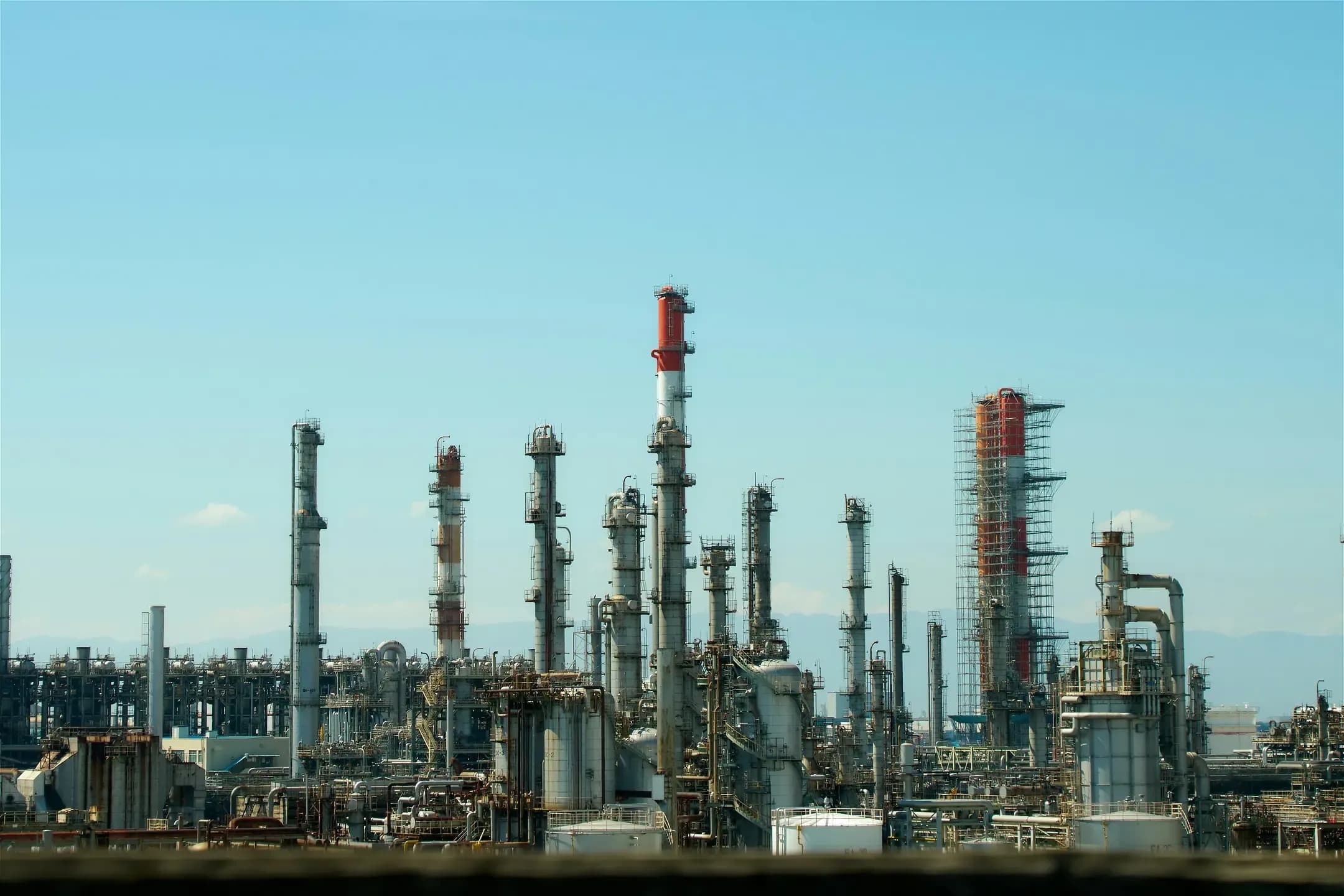

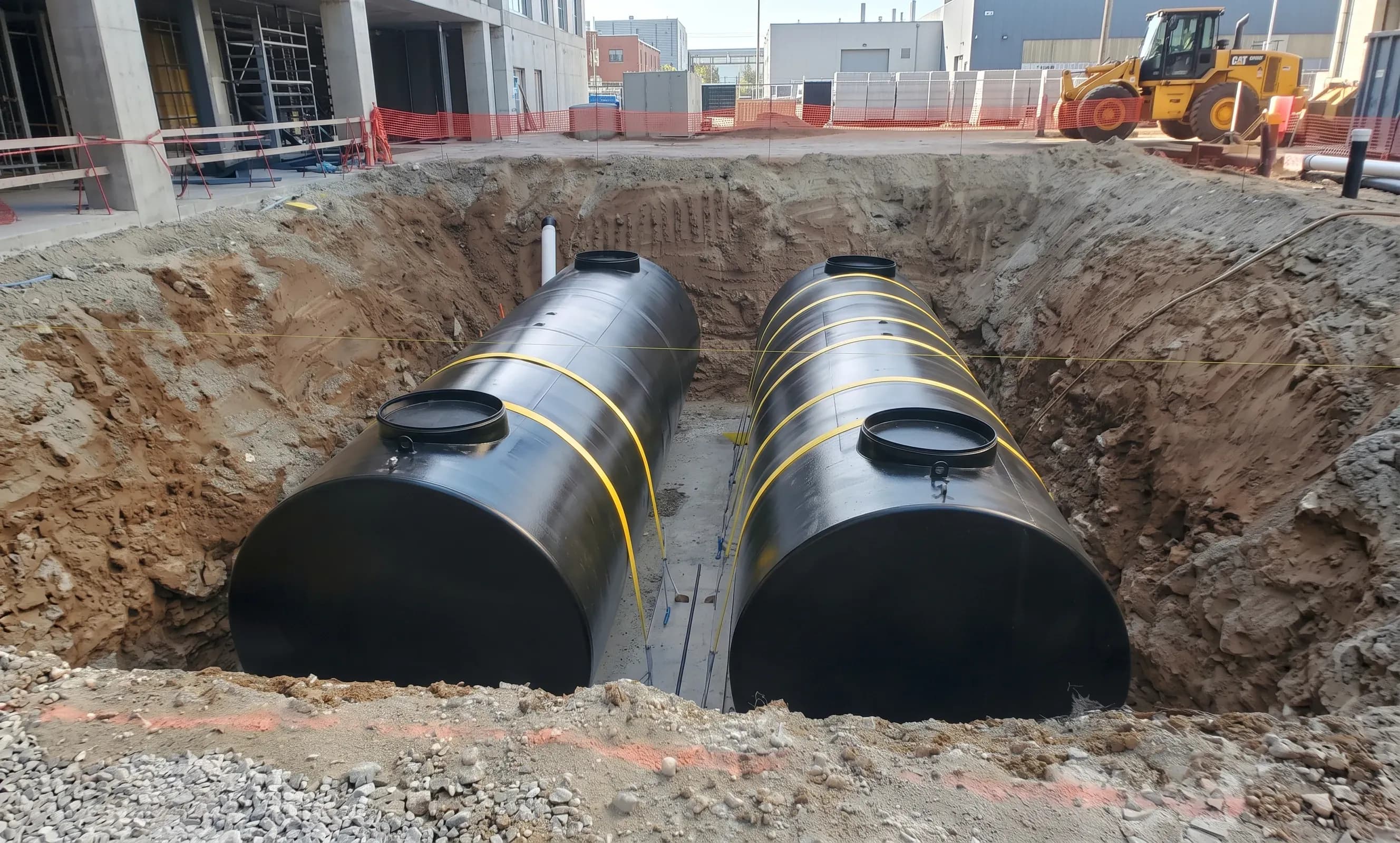

This self-contained design makes them the ideal choice for congested refinery footprints, where dust-free installation around operating machinery is essential. Whether dropped into shallow trenches alongside cross-country pipelines or positioned near buried storage tanks and civil foundations, they deliver stable, localized corrosion control without the delays of traditional ground bed construction.
Your corrosion challenges are our expertise,
Trust the industry leader in electrochemistry and asset integrity.
Technical Specifications & Operating Parameters
A concise breakdown of our Canister Anode specifications, detailing the electrical capacities and structural dimensions required for rapid, low-resistance ground bed installations.
Anode
Technical Specification Parameter | MMO Tubular Core Canister | Silicon Iron Core Canister | Graphite Core Canister | Platinized Titanium Core Canister |
|---|---|---|---|---|
Primary Anode Material | ASTM B338 Gr. 1/2 MMO Ti Tube | ASTM A518 Gr. 3 HSCI Alloy | High Carbon Extruded Graphite | ASTM B348 Pt/Ti Rod or Tube |
Anode Catalytic Coating | Iridium-Tantalum Oxide (Ir-Ta) | N/A (Solid Metallurgical Alloy) | Microcrystalline Wax Treated | Pure Platinum Layer (2.5 / 5.0 µm) |
Canister
Technical Specification Parameter | Description |
|---|---|
Primary Anode Material | ASTM B338 Gr. 1/2 MMO Ti Tube |
Anode Catalytic Coating | Iridium-Tantalum Oxide (Ir-Ta) |
Canister Shell Material | Spiral Galvanized Sheet Steel |
Canister Shell Diameter | 150 mm, 200 mm, 250 mm, 300 mm |
Standard Canister Length | 1.0 m, 1.5 m, 2.0 m, 3.0 m |
Conductive Backfill | Calcined Petroleum Coke Breeze |
Backfill Density | > 1000 kg/m³ (Vibrated) |
Standard Lead Cable Tail | 1C x 16 mm² XLPE/PVC or PVDF |
Electrochemical Wear Rate | 0.5 to 4.0 mg / Ampere-year |
Expected System Design Life | 20 to 30+ Years |
Anode
Technical Specification Parameter | MMO Tubular Core Canister | Silicon Iron Core Canister | Graphite Core Canister | Platinized Titanium Core Canister |
|---|---|---|---|---|
Primary Anode Material | ASTM B338 Gr. 1/2 MMO Ti Tube | ASTM A518 Gr. 3 HSCI Alloy | High Carbon Extruded Graphite | ASTM B348 Pt/Ti Rod or Tube |
Anode Catalytic Coating | Iridium-Tantalum Oxide (Ir-Ta) | N/A (Solid Metallurgical Alloy) | Microcrystalline Wax Treated | Pure Platinum Layer (2.5 / 5.0 µm) |
Canister
Technical Specification Parameter | Description |
|---|---|
Primary Anode Material | ASTM B338 Gr. 1/2 MMO Ti Tube |
Anode Catalytic Coating | Iridium-Tantalum Oxide (Ir-Ta) |
Canister Shell Material | Spiral Galvanized Sheet Steel |
Canister Shell Diameter | 150 mm, 200 mm, 250 mm, 300 mm |
Standard Canister Length | 1.0 m, 1.5 m, 2.0 m, 3.0 m |
Conductive Backfill | Calcined Petroleum Coke Breeze |
Backfill Density | > 1000 kg/m³ (Vibrated) |
Standard Lead Cable Tail | 1C x 16 mm² XLPE/PVC or PVDF |
Electrochemical Wear Rate | 0.5 to 4.0 mg / Ampere-year |
Expected System Design Life | 20 to 30+ Years |
Key Advantages of BSS Tech Canister Anode
Rapid and Clean Field Installation
Ready-assembled modules lower directly into excavations, eliminating site-mixing of dusty petroleum coke breeze.
Guaranteed Backfill Compaction
Mechanical vibration during factory assembly achieves a dense, uniform coke breeze matrix free of voids or air pockets.
Complete Cable Joint Protection
Factory-potted cable connections sealed with dielectric epoxy resin prevent moisture penetration and joint failure.
Centered Anode Geometry
Non-metallic internal spacers keep the primary anode perfectly centered, ensuring uniform 360-degree current discharge.
Versatile Core Selection
Available with MMO titanium, high silicon iron, graphite, or platinized cores to suit any project specification.

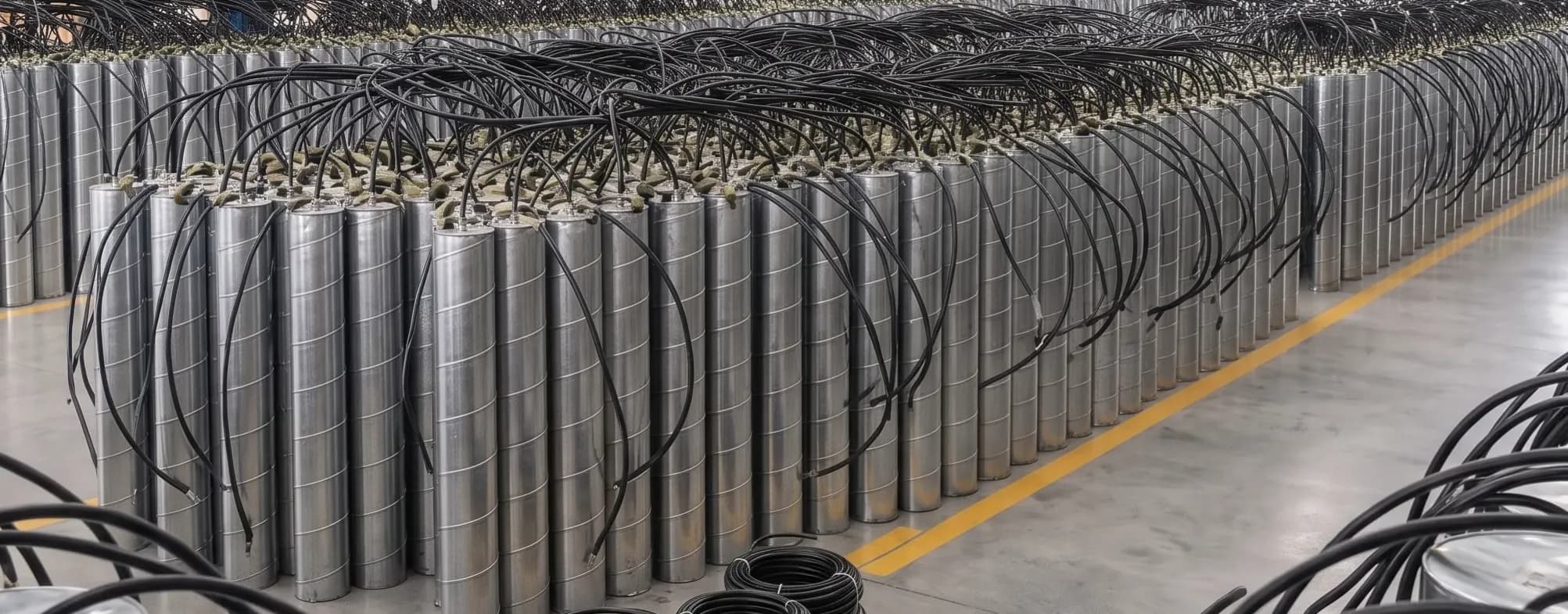

Precision Canister Anode Assembly from BSS Technologies
BSS Technologies controls every step of canister anode fabrication, cable joint potting, and backfill compaction. Our AMPP/NACE-certified engineers select premium primary anode cores, verify cable insulation integrity, perform automated vibration filling of high-purity calcined petroleum coke breeze, and conduct leak and electrical continuity testing, delivering certified canister anode systems that protect your buried infrastructure throughout their operational design lives.
In-house automated vibration filling ensures optimal coke breeze compaction.
Dielectric resin potted cable joints subjected to 100% seal verification.
Galvanized steel canisters manufactured to exact client length requirements.
In-house AMPP/NACE specialists calculate exact ground bed resistance and lifespan.
Applications of Canister Anode
Areas
In-plant refinery piping networks
Cross-country pipelines & utility tie-ins
Underground storage tanks & pressure bullets
Reinforced concrete footings & pile caps
Deep well ICCP groundbeds
Shallow vertical & horizontal groundbeds
Above-ground storage tank (AST) bottom plates
Congested plant utility corridors
High-resistivity soil locations
Fast-track groundbed retrofits
