Cathodic Protection Cables
As one of the largest cathodic protection solution providers, BSS Technologies supplies a wide range of CP cables engineered for optimal performance in harsh conditions. Our cables ensure stable current distribution and resistance to chemical, mechanical, and environmental degradation.
Reliable Cable Solutions for Cathodic Protection Systems
Cathodic Protection cables serve as the vital link connecting transformer rectifiers, test stations, junction boxes, and anodes. BSS Tech maintains a robust stock of the most commonly used cables to ensure rapid availability for your project requirements. Beyond our standard inventory, our team is equipped to supply specialized cables tailored to your specific project needs.
Common Type of Cables Supplied by BSS Technologies
We provide a diverse array of specialized cables tailored to withstand specific chemical and environmental challenges
HMWPE Cable
Standard robust cable for soil and freshwater direct burial installations.

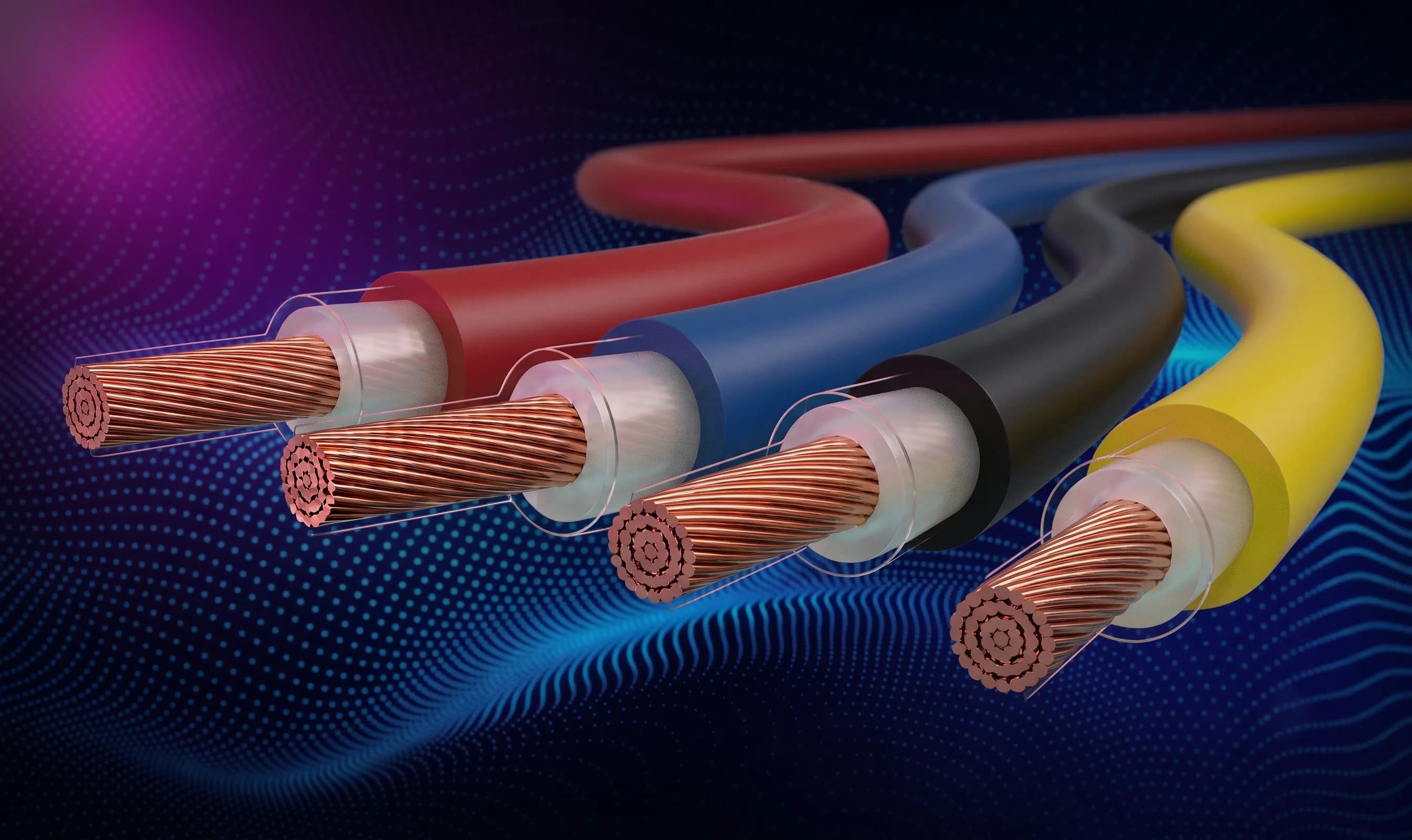

Kynar / HMWPE Cable
Dual-extruded cable offering excellent resistance to chlorine and harsh chemicals generated at the anode.
Halar / HMWPE Cable
Superior chemical resistance, engineered for aggressive deep well groundbeds.
XLPE / PVC Cable
Excellent thermal and mechanical properties for general-purpose applications.
LV Power Cable
Designed for reliable low-voltage power distribution in industrial and commercial buildings.
MV Power Cable
Robust solutions engineered for medium-voltage distribution systems, ensuring minimal energy loss.
Technical Specifications: Standard CP Cables
Technical datasheet for standard single-core Cathodic Protection cables (such as HMWPE and dual-extruded Halar/HMWPE or Kynar/HMWPE). Note: Custom sizes, stranding, and insulation thicknesses are available upon request.
Size (mm²) | No. Core | Nominal Insulation Thickness (mm) | Nominal Sheathing Thickness (mm) | Nominal Armour Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (Kg/km) |
|---|---|---|---|---|---|---|
2.5 | 1C | 0.7 | 1.4 | N/A | 6 | 70 |
4 | 1C | 0.7 | 1.4 | N/A | 7 | 90 |
6 | 1C | 0.7 | 1.4 | N/A | 7.5 | 110 |
10 | 1C | 0.7 | 1.4 | N/A | 8.5 | 160 |
16 | 1C | 0.7 | 1.4 | N/A | 9.5 | 225 |
25 | 1C | 0.9 | 1.4 | N/A | 11.0 | 330 |
35 | 1C | 0.9 | 1.4 | N/A | 12.1 | 430 |
50 | 1C | 1.0 | 1.4 | N/A | 14.2 | 560 |
70 | 1C | 1.1 | 1.5 | N/A | 16.4 | 790 |
Size (mm²) | No. Core | Nominal Insulation Thickness (mm) | Nominal Sheathing Thickness (mm) | Nominal Armour Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (Kg/km) |
|---|---|---|---|---|---|---|
2.5 | 1C | 0.7 | 1.4 | N/A | 6 | 70 |
4 | 1C | 0.7 | 1.4 | N/A | 7 | 90 |
6 | 1C | 0.7 | 1.4 | N/A | 7.5 | 110 |
10 | 1C | 0.7 | 1.4 | N/A | 8.5 | 160 |
16 | 1C | 0.7 | 1.4 | N/A | 9.5 | 225 |
25 | 1C | 0.9 | 1.4 | N/A | 11.0 | 330 |
35 | 1C | 0.9 | 1.4 | N/A | 12.1 | 430 |
50 | 1C | 1.0 | 1.4 | N/A | 14.2 | 560 |
70 | 1C | 1.1 | 1.5 | N/A | 16.4 | 790 |
Why Choose BSS Technologies as Your Preferred Cable Supplier?

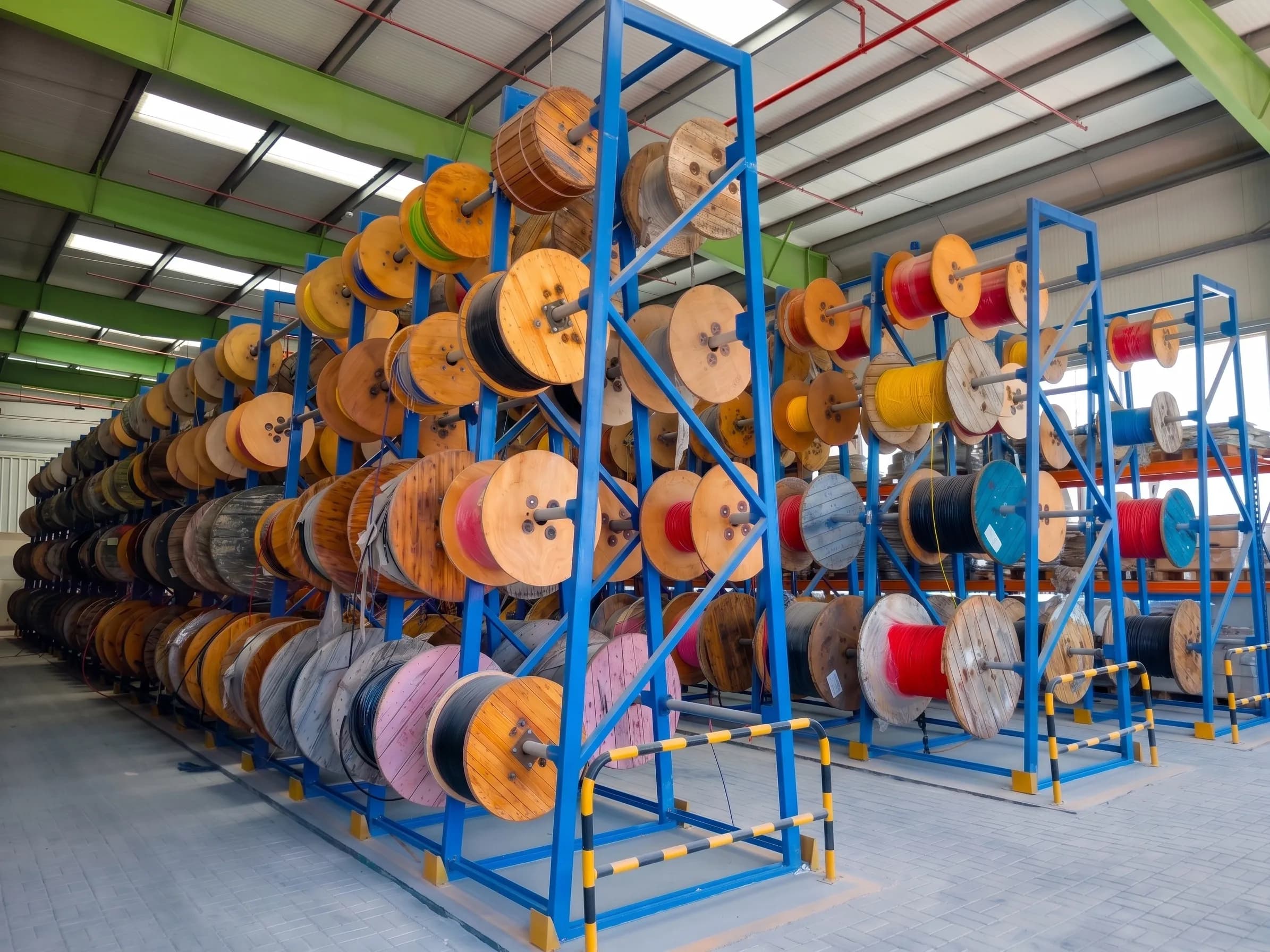

We maintain a large inventory of the most commonly used cables.
BSS Technologies can also supply specialized cables according to client requirements.
Versatile configurations including single-core and multi-core options available upon request.
Compliant with industry-leading standards for safety and electrical efficiency.
