LooN™ Cathodic Protection Test Station
BSS Technologies supplies the LooN™ Cathodic Protection Test Station, an advanced and versatile above-ground terminal designed for monitoring potentials and currents on protected structures.
LooN™ CP Test Station Overview
The LOON CP Test Station is a high-impact, non-conductive terminal developed as an economical solution for dependable cathodic protection monitoring. It allows field technicians to easily access and measure electrical potentials associated with various protected structures.
Beyond its primary function as a test station, the LooN™ CP Test Station unit is designed to operate effectively as a junction box, offering flexibility for different site configurations. Its rugged, non-metallic polycarbonate design drastically reduces electrical shock hazards, making it a safe and practical choice for pipeline networks and plant piping environments.
Features & Technical Advantages
High impact polycarbonate build for extreme durability.
Four times the impact strength of aluminium units.
Dimensional stability from -15.5°C up to +121°C.
Excellent resistance against direct ultraviolet radiation.
Terminals are fully accessible from both board sides.
Non-metallic design drastically reduces electric shock risk.

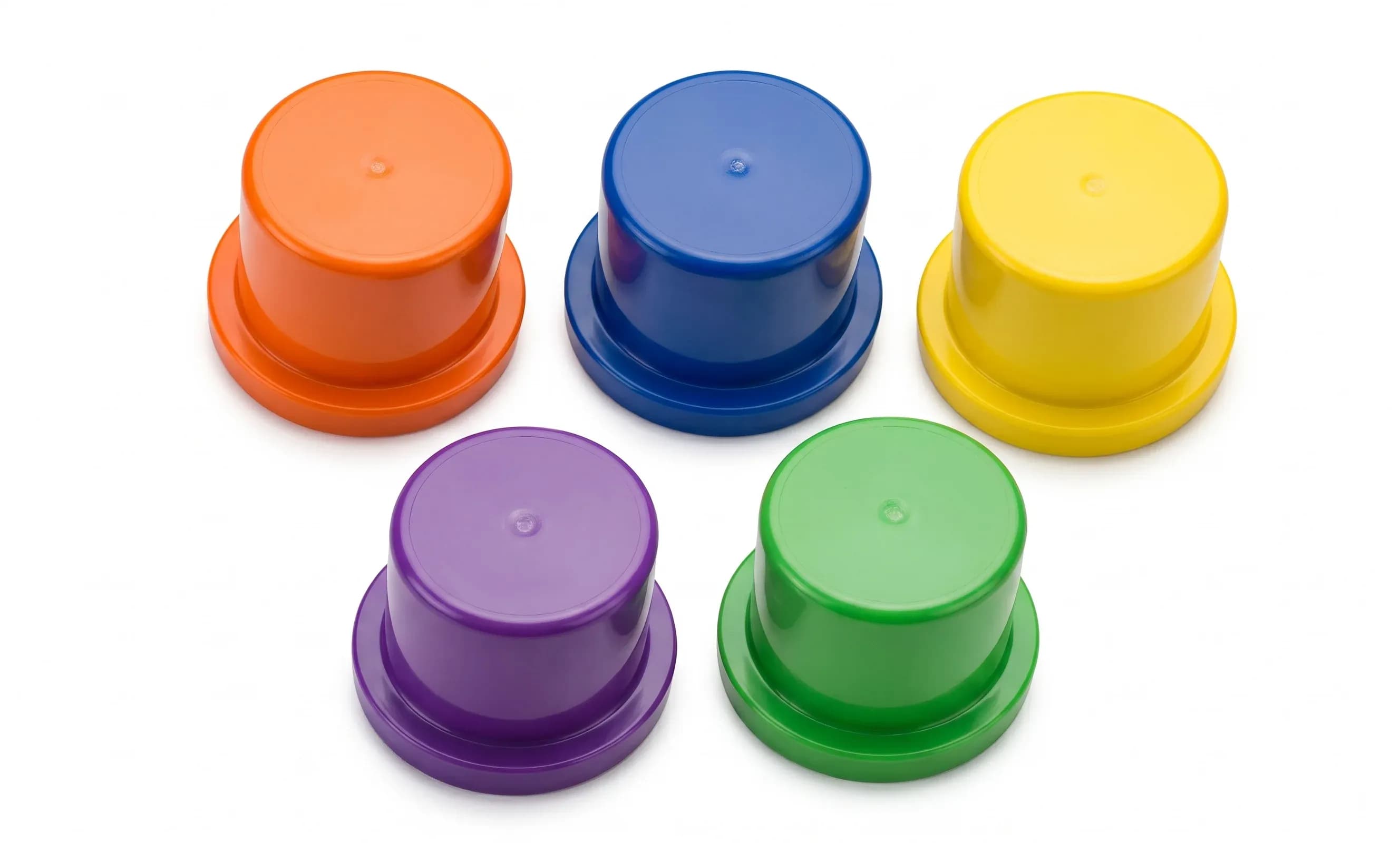

Multiple colour options available to suit site preferences.
Technical Specifications: LooN™ CP Test Station

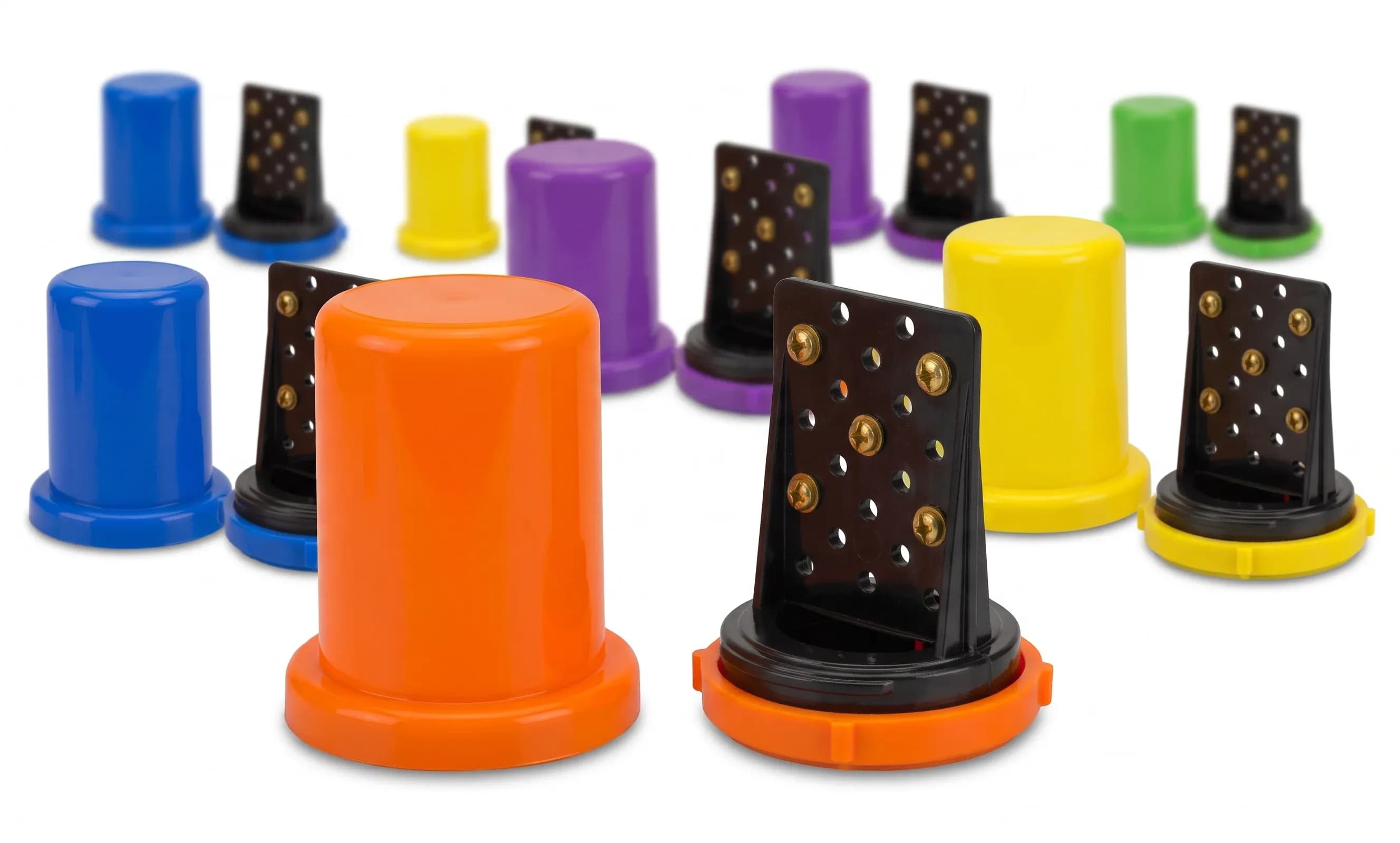

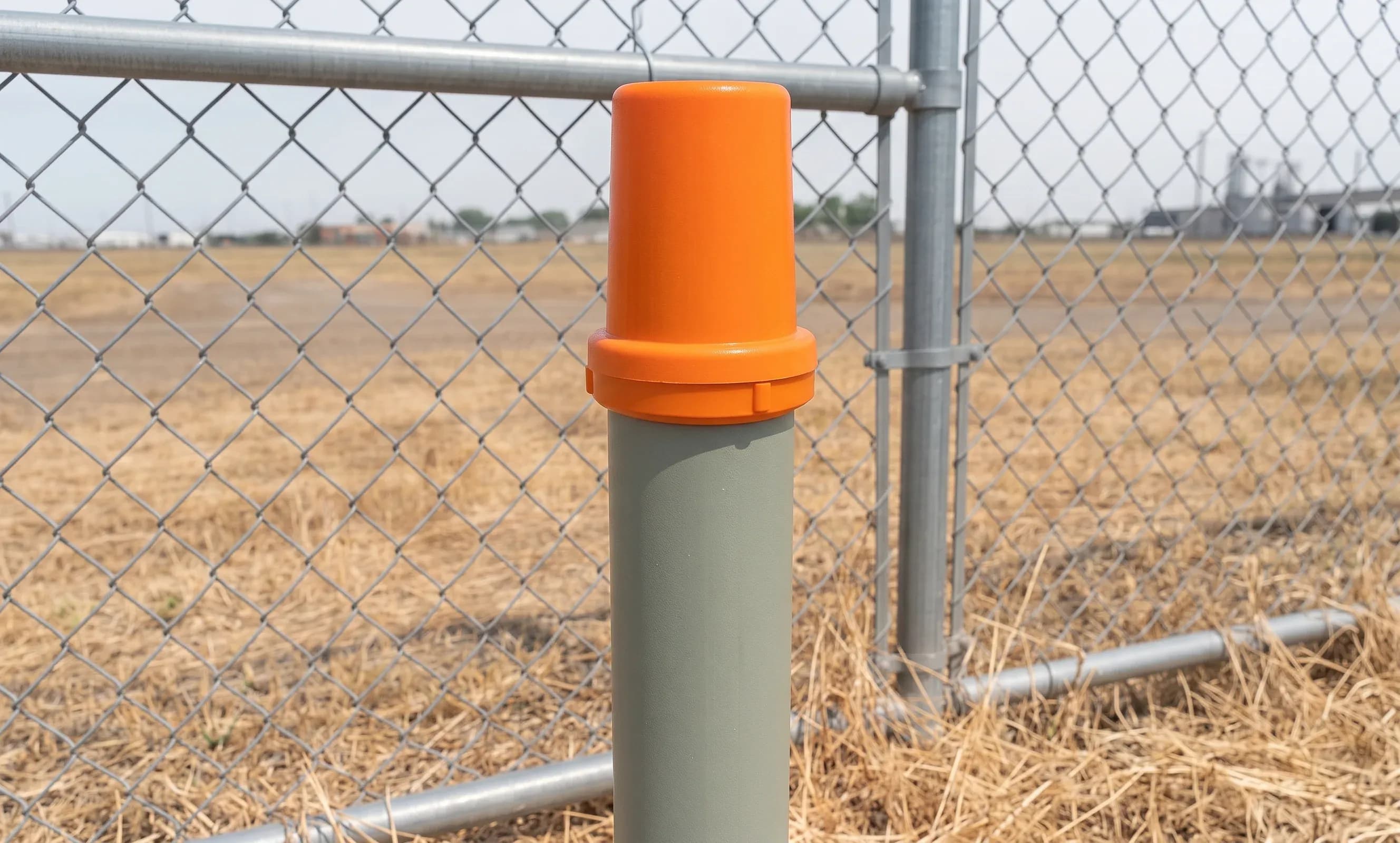

The LooN™ CP Test Station is engineered for longevity in harsh field conditions. Every unit includes a terminal board clamped with a nut and bolt to facilitate cable termination, shunt installation, and resistor mounting. The test station head can be locked securely into the conduit by a simple twist mechanism.
Component | Material Specification |
|---|---|
Test Station Housing | High Impact Polycarbonate |
Internal Hardware | Stainless Steel (Screws, Washers, Hex Nuts) |
Optional Conduit | UV Stabilized PVC or Galvanized Iron |
Temperature Tolerance | -15.5°C to +121°C (-60°F to +250°F) |
Impact Performance | High resistance to impact and UV rays |
Component | Material Specification |
|---|---|
Test Station Housing | High Impact Polycarbonate |
Internal Hardware | Stainless Steel (Screws, Washers, Hex Nuts) |
Optional Conduit | UV Stabilized PVC or Galvanized Iron |
Temperature Tolerance | -15.5°C to +121°C (-60°F to +250°F) |
Impact Performance | High resistance to impact and UV rays |
Applications of CP Test Station
Pipe-to-Soil Potential Measurements
Instant-Off Potential Testing
Anode Current Monitoring
Foreign Structure Interference Testing
Stray Current Monitoring
Electrical Isolation Joint Testing
Casing Short Detection
Coupon Testing and Monitoring
Line Current (IR Drop) Measurements
Grounding System Effectiveness Checks
Telluric Current Activity Tracking
Automated Data Logger Connection
Why Choose BSS Technologies as Your Preferred CP Test Station Supplier?
Our technical team provides professional guidance to support your corrosion monitoring strategies. We offer dedicated assistance to verify that your monitoring networks and test stations are deployed with maximum engineering efficiency across your onshore and offshore asset networks.
Reliable supply of robust polycarbonate test terminals.
Versatile design fits junction box or site survey needs.
Non-conductive housing prevents electrical accidents.
Engineering support provided for site specific setups.
Global standards compliance for energy infrastructure.
