E4 LPR Corrosion Monitoring Probe
An advanced embedded sensor utilizing linear polarization resistance to deliver accurate, real-time reinforcement corrosion data for concrete structures.
What is the E4 LPR Probe?
The E4 LPR probe is a dedicated embeddable diagnostic sensor built specifically for reinforced concrete. It utilizes linear polarization resistance to measure active corrosion rates accurately without altering the natural state of the embedded steel reinforcement. It is fully compatible with ReKorr® hand-held monitoring equipment.
Measuring steel potential and temperature is directly linked to determining overall concrete corrosivity. Installed adjacent to the rebar, this probe tracks open circuit potential continuously, delivering the exact data required to evaluate Icorr and the corrosion rate in micro mills per year, helping facility managers prevent severe concrete spalling.
Measurement & Diagnostic Parameters
Gathering comprehensive field data is critical for accurate structural assessments. The E4 LPR probe is engineered to capture multiple electrochemical variables simultaneously. Measuring environmental temperature and steel potential is directly linked to determining overall concrete corrosivity, allowing engineers to implement timely protective measures.
Records data to evaluate exact Icorr values
Calculates the corrosion rate in micro mills per year
Measures real time open circuit potential
Tracks temperature and concrete corrosivity
Operates without altering the natural corrosion state of the reinforcement
Features & Technical Advantages
Easy installation process and completely maintenance free.
Measures open circuit potential and linear polarization.
Shallow design fits easily into 30mm concrete covers.
Compact volume avoids impacting overall structural strength.
Delivers a proven operational service life of 25 years.
Alkaline resistant probe body and outer cable sheath.
High quality oil and chemical resistant screened cable.
Technical Specifications
BSS Technologies manufactures the E4 LPR probe using highly resilient materials to withstand aggressive, alkaline concrete environments. The parameters below detail the internal electrode configuration and terminal options required to maintain precise, long-term structural monitoring.
Component | Technical Specification |
|---|---|
Working Electrode (WE) | Carbon Steel |
Auxiliary Electrode (AE) | Stainless Steel |
Primary Reference Electrode | Silver / Silver Chloride (Ag/AgCl) |
Secondary Reference Electrode | Zinc |
Additional Sensor | Integrated temperature monitoring |
Optional Hardware | Earth lead to connect directly to rebar |
Standard Cable Configuration | 8 to 12 core 0.5mm² screened copper cable |
Cable Material Properties | Colour coded, oil and chemical resistant |
Standard Cable Length | Customizable from 5 to 10 meters |
Termination Options | Fixed probe terminals or optional field terminals |
Hardware Interface | 12 pin connector for ReKorr devices |
Expected Design Life | 25 years minimum inside concrete |
Component | Technical Specification |
|---|---|
Working Electrode (WE) | Carbon Steel |
Auxiliary Electrode (AE) | Stainless Steel |
Primary Reference Electrode | Silver / Silver Chloride (Ag/AgCl) |
Secondary Reference Electrode | Zinc |
Additional Sensor | Integrated temperature monitoring |
Optional Hardware | Earth lead to connect directly to rebar |
Standard Cable Configuration | 8 to 12 core 0.5mm² screened copper cable |
Cable Material Properties | Colour coded, oil and chemical resistant |
Standard Cable Length | Customizable from 5 to 10 meters |
Termination Options | Fixed probe terminals or optional field terminals |
Hardware Interface | 12 pin connector for ReKorr devices |
Expected Design Life | 25 years minimum inside concrete |

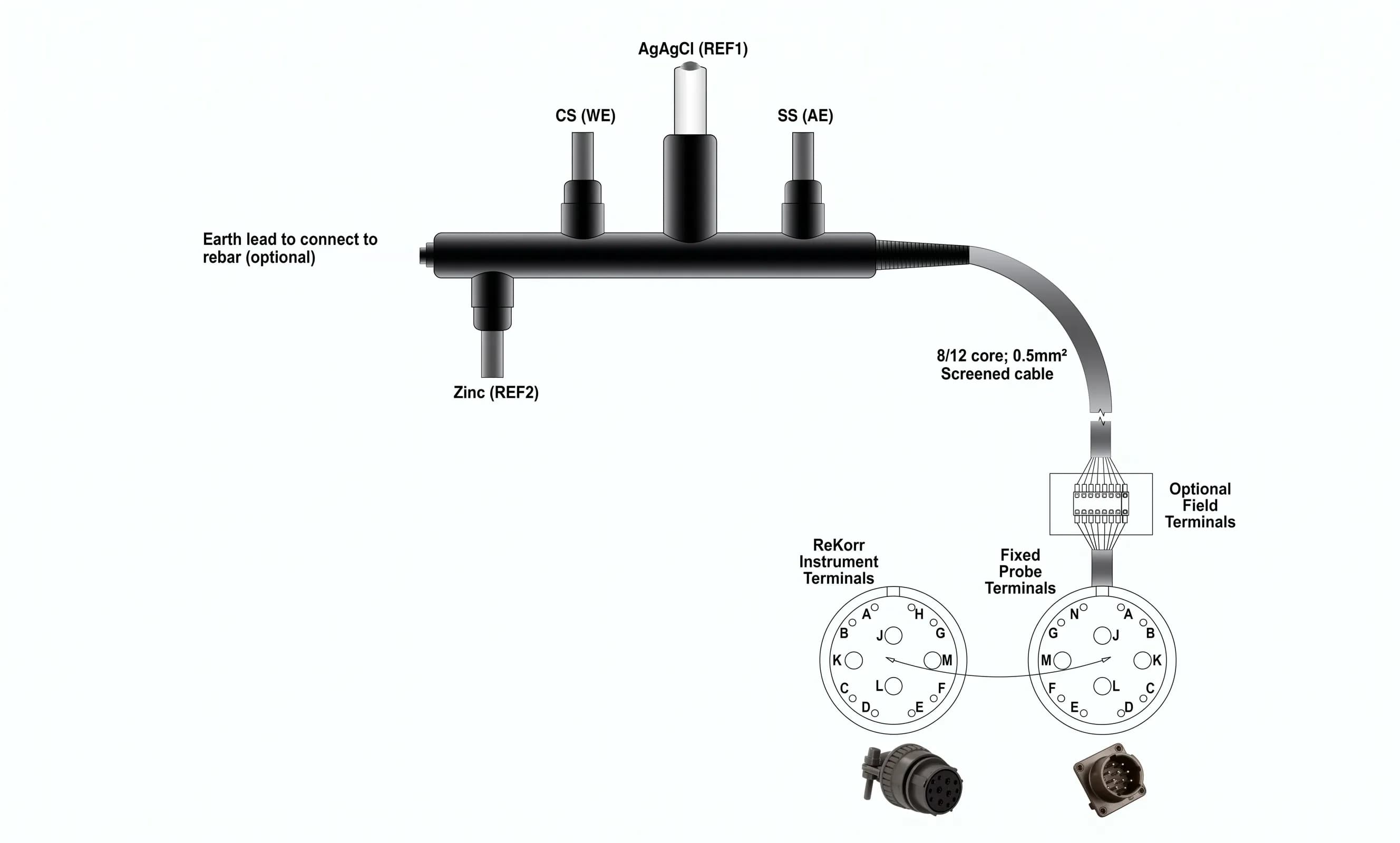

Technical Diagram
