Zinc Ribbon Anode
High-efficiency, continuous wire core zinc ribbon anodes providing flexible cathodic protection and AC mitigation for low-resistivity soils and brines.
What Are Zinc Ribbon Anodes?

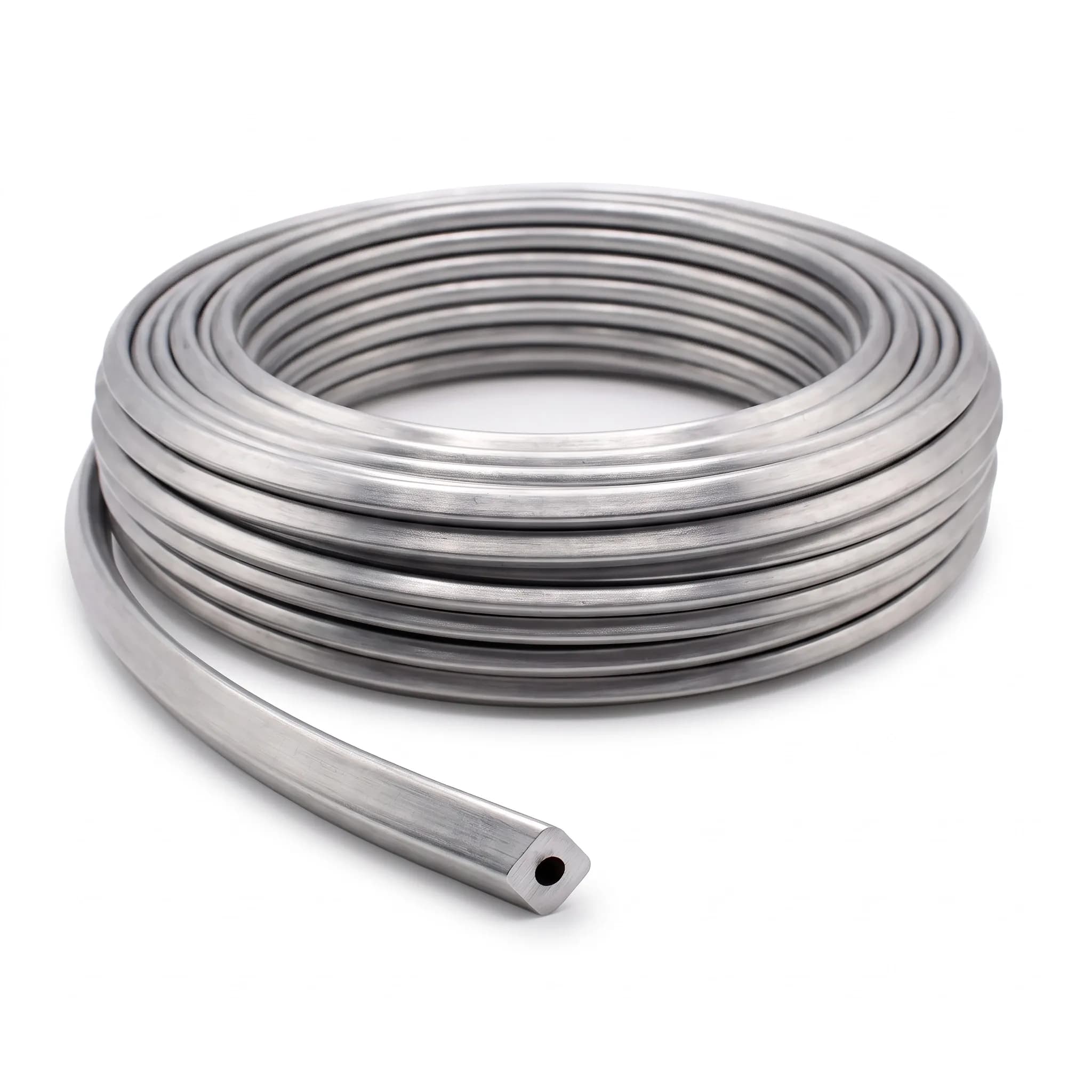

Zinc Ribbon Anodes are flexible, continuous zinc strips featuring an internal steel wire core. Because of their unique shape and flexibility, they can be easily unrolled and installed along any length of cathode, making them ideal for pipeline protection, AC mitigation, and grounding.
Galvanic Operation & Safety
Zinc anodes create a reliable galvanic cell with steel structures, functioning effectively in highly conductive electrolytes. Engineered specifically for low-resistivity environments below 1000 ohm-cm, they corrode sacrificially to prevent rust. As a naturally non-sparking metal, zinc provides an exceptionally safe solution for hazardous industrial applications.
Maintains an open circuit potential of minus 1.05 Volts
Provides a steady base current capacity of 780 Ah per kg
Complies fully with ASTM B418 and MIL A 18001K standards
High temperature alloys available for environments above 50°C
Effectively bleeds off induced AC currents from steel assets
Zinc Ribbon Anode Features
High 95% efficiency for cost-effective protection.
Pre-packaged options for fast, clean soil installations.
Features a robust 100 kA lightning surge protection rating.
Self-regulating operation with no stray currents.
Continuous steel wire core delivers uniform current output.
Highly effective for seawater and produced marine brines.

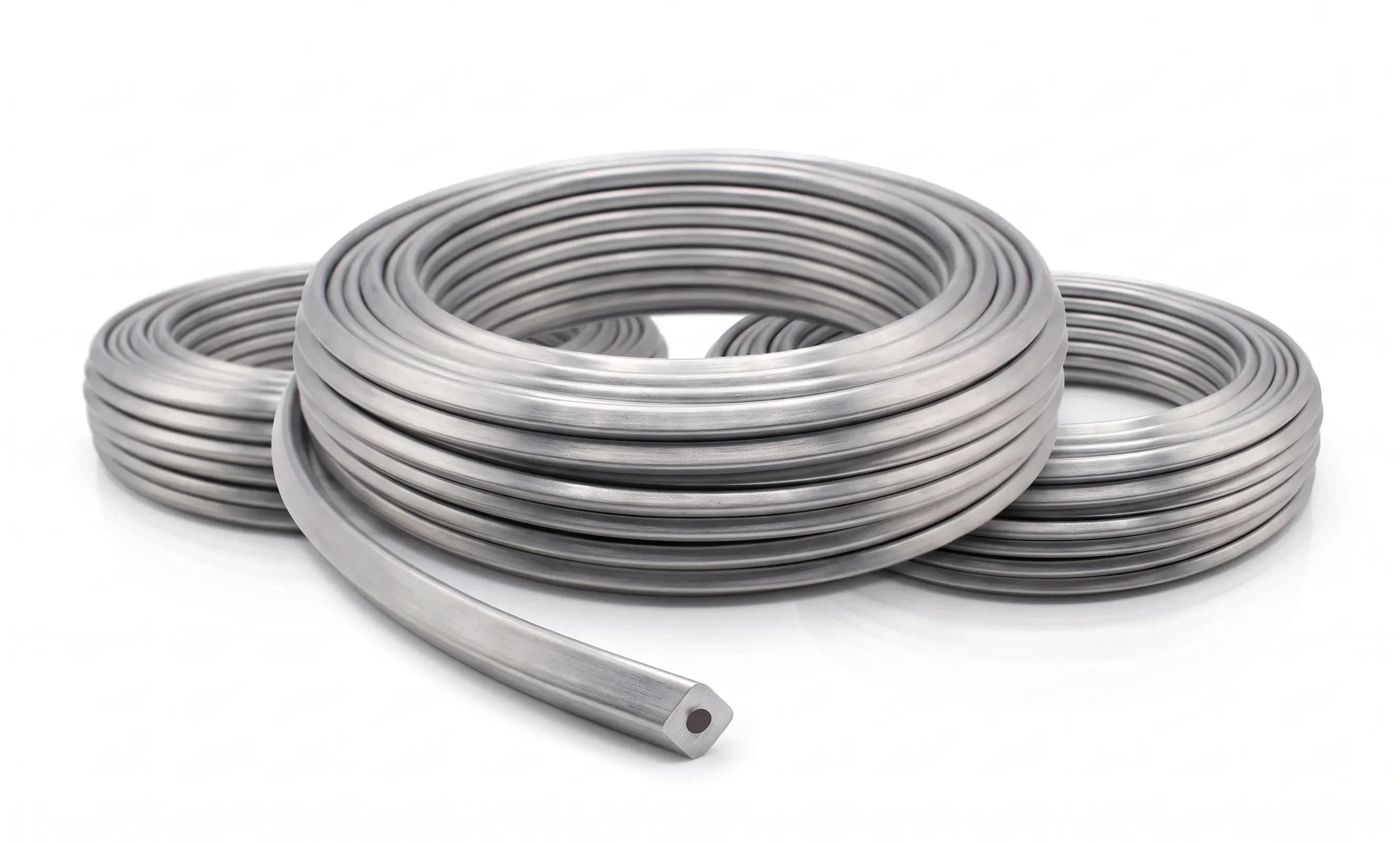

Zinc Ribbon Sizes & Configurations
BSS Technologies supplies flexible continuous ribbon sections in various profiles to meet specific current requirements and spatial constraints.
Plus Size Ribbon (5/8" × 7/8")
Standard Size Ribbon (1/2" × 9/16")
Small Size Ribbon (11/32" × 13/32")
Technical Specifications
BSS Tech provides zinc ribbon anodes designed for reliable corrosion control in harsh environments. They are manufactured under strict quality control to ensure consistent chemical composition and electrochemical output.
Applicable Environments
Low-resistivity soils (<1000 Ω-cm) with gypsum/bentonite backfill or high-resistivity soil with low cathode current requirement.
Current Capacity
780 Ah/kg.
Galvanic Efficiency
Typically, 90–95%.
QA & Compliance
Fully compliant with ASTM B418 (Type I & II) and MIL-A-18001K.
Element | ASTM B 418 Type I & MIL A-18001K (%) | ASTM B 418 Type II (%) |
|---|---|---|
Aluminium | 0.10 – 0.50 | 0.005 max |
Cadmium | 0.025 – 0.07 | 0.003 max |
Lead | 0.006 max | 0.003 max |
Iron | 0.005 max | 0.0014 max |
Copper | 0.005 max | 0.002 max |
Magnesium | - | - |
Others (each) | 0.02 max | - |
Others (Total) | 0.05 max | - |
Zinc | Remainder | Remainder |
Element | ASTM B 418 Type I & MIL A-18001K (%) | ASTM B 418 Type II (%) |
|---|---|---|
Aluminium | 0.10 – 0.50 | 0.005 max |
Cadmium | 0.025 – 0.07 | 0.003 max |
Lead | 0.006 max | 0.003 max |
Iron | 0.005 max | 0.0014 max |
Copper | 0.005 max | 0.002 max |
Magnesium | - | - |
Others (each) | 0.02 max | - |
Others (Total) | 0.05 max | - |
Zinc | Remainder | Remainder |
Applications of Zinc Ribbon Anode
Pipeline AC mitigation grounding
Step and touch potential safety
Storage tank bottom CP
Buried pipelines in low-resistivity soil
Casing pipe annular spaces
Isolation joint surge protection
Heat exchanger water boxes
Marine vessel ballast tanks
HDD pipeline crossings
Substation perimeter grounding mats
Underground storage tanks (USTs)
Sheet pilings in saline environments
Why Choose Zinc Ribbon Anodes from BSS Technologies?
Our field experts emphasize strict quality oversight to provide dependable, uncompromised asset shielding across complex infrastructure. We complement our product offerings with dedicated technical assistance to ensure our products are deployed with maximum engineering efficiency.
Strict quality control to global standards.
Adequate stock and short lead times.
Custom sizing options for specific project needs.
Engineering assistance ensuring optimal design life.
